Minder S1

Quick Facts

Who it's for? Work-at-height professionals and rescue teams building rope systems that use a Prusik friction hitch for progress capture and handle moderate loads.

What it does? A compact, lightweight, high-efficiency pulley for progress-capture systems.

How it does it? Its moving side plates are designed for use with a Prusik friction hitch, and a sealed-ball-bearing sheave provides 91% efficiency.

Description

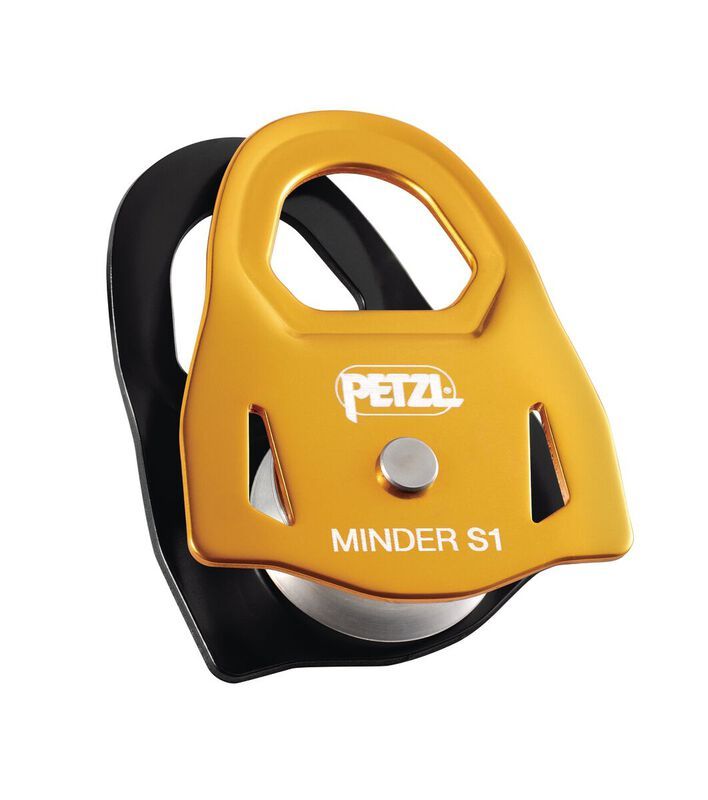

The Petzl MINDER S1 is a compact pulley designed for work-at-height applications and on-site rescue systems. Its moving side plates are designed for use with a Prusik friction hitch in progress-capture systems. The sheave is mounted on sealed ball bearings to provide high efficiency when handling moderate loads. Large attachment holes can fit up to two carabiners, and the side-plate design protects the rope path. Petzl lists the pulley for everyday work-at-height use and on-site rescue.

Features

• Moving side plates designed for use with a Prusik friction hitch
• Sealed-ball-bearing sheave
• Compact and lightweight design
• Large attachment holes fit up to two carabiners
• Side-plate design protects the rope path

Tech Specs

• Compatible rope diameter: 6–11 mm
• Sheave diameter: 25 mm
• Ball bearings: Yes
• Efficiency: 91%
• Maximum working load: 5 kN
• Breaking strength: 23 kN
• Weight: 71 g
• Certifications: CE EN 12278, UIAA, NFPA Technical Use, XF 494 Light
• Materials: Aluminum and stainless steel
• Reference: P060AA00
