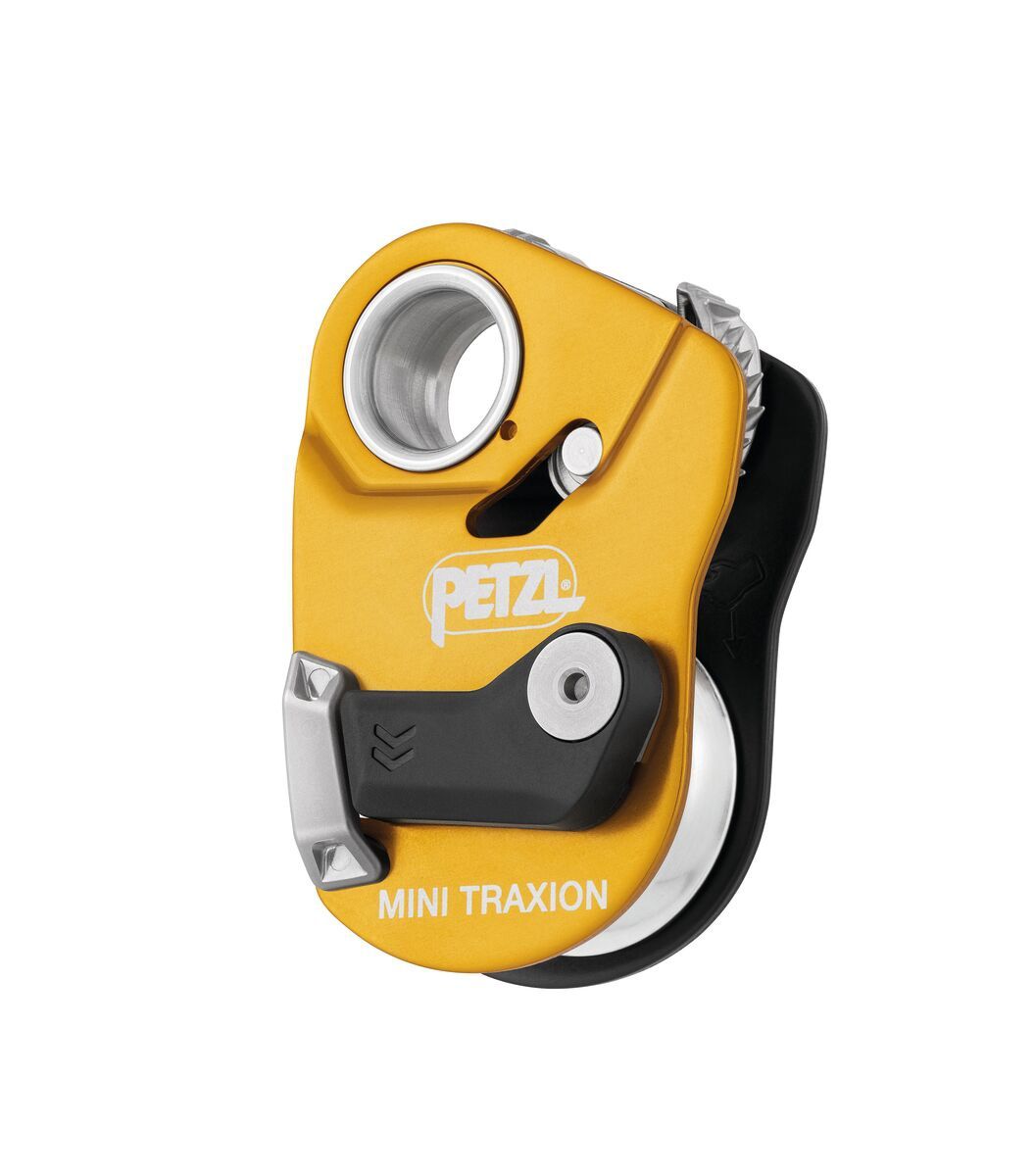

Mini Traxion

Quick Facts:

Who it's for? Climbers and rescuers building efficient hauling systems.

What it does: Captures progress while hauling loads and can also function as a standard pulley.

How it does it: An integrated toothed cam grips the rope automatically, while a sealed ball-bearing sheave provides smooth, efficient hauling.

Description:
The Petzl MINI TRAXION is a high-efficiency progress-capture pulley designed for hauling and rescue systems. Its openable side plate allows the rope to be installed while the pulley remains attached to the anchor, reducing the chance of dropping the device during setup. A large aluminum sheave with sealed ball bearings delivers 93% efficiency, making hauling smoother and easier, even with heavier loads. The stainless steel toothed cam features a self-cleaning slot for reliable performance on frozen or dirty ropes, and it can be locked open to use the MINI TRAXION as a standard pulley. Compact, durable, and glove-friendly, it's built for demanding climbing and rescue applications.

Features:

• Openable side plate allows rope installation while attached to the anchor.
• 93% efficiency thanks to a large sealed ball-bearing sheave.
• Stainless steel toothed cam with self-cleaning slot performs on dirty or icy ropes.
• Cam locks open for use as a standard pulley.
• Triple-action side plate is easy to operate, even with gloves.
• Compact, lightweight aluminum construction.
• Protective side plate design helps shield the rope path.
• Compatible with 7–11 mm ropes.
• Works with Petzl RAD LINE and PUR'LINE cords for specific hauling applications.

Tech Specs:

• Weight: 150 g
• Rope Compatibility: 7–11 mm
• Sheave Diameter: 32 mm
• Sheave Type: Sealed ball bearings
• Efficiency: 93%
• Working Load: 5 kN (2 × 2.5 kN)
• Breaking Strength: 20 kN
• Progress Capture Working Load: 2.5 kN
• Progress Capture Breaking Strength: 4 kN
• Materials: Aluminum, stainless steel, nylon
• Certifications: CE EN 567, CE EN 12278, CE EN 12841 Type B, NFPA 2500 Technical Use Pulley and Rope Grab, XF 494 certifications
• Manufacturer Warranty: 3 years
