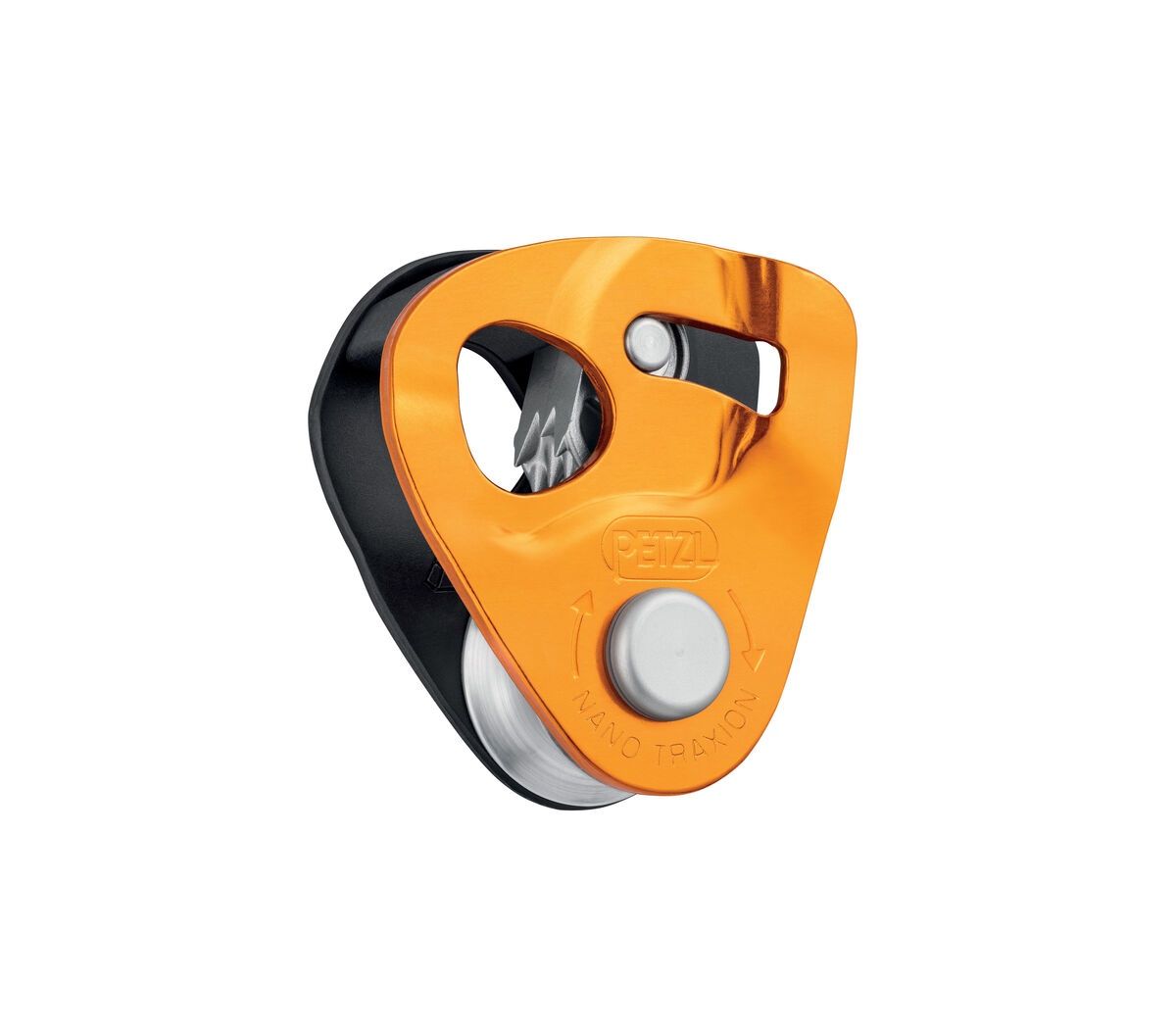

Nano Traxion

Quick Facts:

Who it's for? - Climbers & Canyoneers

What it does? - A simple, high efficiency, lightweight-progress capture pulley that can also be used for ascending

How it does it? - Small design, a 91% efficient pulley, and a toothed cam for gripping the rope

Description

A simple, high-efficiency, ultra-lightweight progress-capture pulley. The Nano Traxion is an ultra-lightweight (53 g) and compact progress-capture pulley designed for rescue. Sealed ball bearings provide excellent efficiency (91 %).

Features

• Ultra-lightweight and compact: only 53 g
• Hole allows an Sm’D carabiner to be connected to the pulley with a cord, making the device loss-proof
• Designed for rescue
• High efficiency: sealed ball bearings provide excellent efficiency (91 %)
• Works even on frozen or muddy ropesc
• Rope installation diagrams are engraved inside the pulley

Tech Spec

Weight: 53 g

Min. rope diameter: 7 mm

Max. rope diameter: 11 mm

Sheave type: Sealed ball bearings

Sheave diameter: 18 mm

Breaking strength: 2 x 7,5 = 15 kN

Breaking strength as progress capture pulley: 4 kN

Efficiency: 91 %
